Portfolio Description

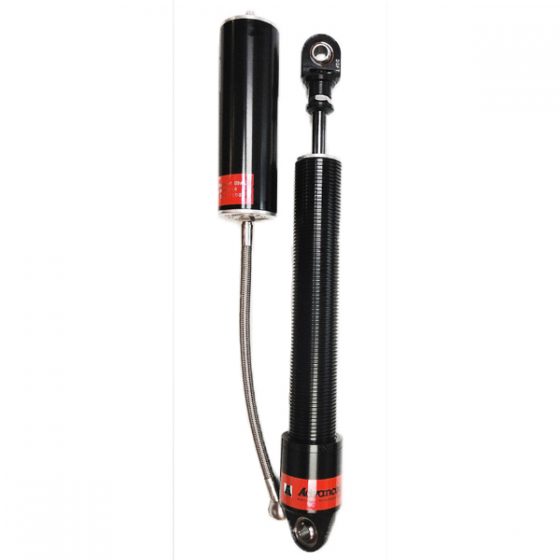

3200 Series Small Body Mono Tube E-Model Adjustable Shock with Remote Canister
The 3200 Series shock is a small body mono-tube (gas) shock with a hard black anodized aluminum body and canister if choosing that option. This shock uses CNC machined aluminum internal parts designed for racing with no aftermarket parts. Most small body mono-tube shocks have too much rod pressure which removes driver feel and causes the race car to feel like it is on top of the track. This shock gives the driver more feel and allows the car to grip the track more. This shock utilizes a base valve installed between the floating piston and the valving piston to isolate the pressure, allowing for substantial reduction in rod pressure. This shock has a Schrader valve that will accept 10-50lbs. gas pressure which provides for fine tuning the chassis balance. The small body shock accepts 1 7/8”, 2 ¼” & 2 ½” I.D. Spring & is available in 5”, 6”, 7”, 8” & 9” shaft lengths.
